REC Kapsül Tip Slipring - RC22

REC Rotary Electrical Connectors

REC Kapsül Tip Slipring - Model RC22 Serisi
RC22 Serisi gövde çapı 22mm olan modellerdir bu modeller 6-36 iletken arasında iletim sağlamaktadır.

Ana Özellikleri

Plastik veya Paslanmaz Çelik Gövde
6 – 36 arası iletken sayısı
Düşük kontak direnci.
Bus protokolleri ile uyumlu.
Kompakt tasarım

Avantajları

Kompakt
İdeal sinyal iletimi (altın teknolojisi)
Fiyat avantajı
Su-toz koruması
Kombin edilebilme özelliği
Değiştirilebilir yapısı

∞ Model Tablosu

Model	Boyutlar L (mm)	İletken sayısı	Akım	Voltaj	Hız
RC22.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22A.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22A.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22A.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22A.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22A.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22A.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22A.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22A.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22A.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22A.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22A1.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22A1.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22A1.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22A1.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22A1.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22A1.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22A1.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22A1.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22A1.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22A1.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22B.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22B.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22B.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22B.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22B.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22B.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22B.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22B.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22B.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22B.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22C.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22C.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22C.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22C.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22C.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22C.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22C.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22C.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22C.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22C.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22C1.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22C1.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22C1.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22C1.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22C1.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22C1.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22C1.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22C1.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22C1.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22C1.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22D.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22D.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22D.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22D.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22D.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22D.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22D.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22D.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22D.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22D.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22D1.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22D1.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22D1.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22D1.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22D1.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22D1.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22D1.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22D1.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22D1.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22D1.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22D2.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22D2.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22D2.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22D2.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22D2.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22D2.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22D2.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22D2.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22D2.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22D2.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22D3.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22D3.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22D3.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22D3.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22D3.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22D3.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22D3.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22D3.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22D3.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22D3.S3602	22×56.8	36	36X2A	0-240VAC	300rpm
RC22F.S0602	22×19	6	6x2A	0-240VAC	300rpm
RC22F.S0702	22×19	7	6x2A	0-240VAC	300rpm
RC22F.S1202	22×28	12	6X2A	0-240VAC	300rpm
RC22F.P0206.S0202	22×28	4	2X6A+2X2A	0-240VAC	300rpm
RC22F.S1502	22×29.5	15	15X2A	0-240VAC	300rpm
RC22F.S1802	22×33.4	18	18X2A	0-240VAC	300rpm
RC22F.P0310	22×33.4	3	3X10A	0-240VAC	300rpm
RC22F.S2402	22×41.2	24	24X2A	0-240VAC	300rpm
RC22F.P0406.S0602	22×41.2	10	4X6A+6X2A	0-240VAC	300rpm
RC22F.S3602	22×56.8	36	36X2A	0-240VAC	300rpm

Uygulama Alanları

Döner Tablalar, Kablo Tamburları, Paketleme, CCTV güvenlik kameraları, Medikal / Laboratuvar ekipmanları, Robotik, Kontrol Ekipmanları Vb. uygulamalar.

Teklif İste

∞ Elektriksel Bilgiler

Özellikler	Değerler
Nominal Gerilim	240VDC/240VAC
Nominal Akım	2A/ring
Iletken Boyutu	AWG28, renk kodlu, PTFE yalıtkan, gümüs kaplama bakır
Iletken Genisligi	250mm (ve talep edilen degerler)
Dielektrik Sabiti	500VAC@50Hz, 60s
Yalıtkan Direnç	1000MΩ/500VDC
Elektriksel Gürültü	0.01Ω

∞ Mekanik Bilgiler

Özellikler	Değerler
Nominal Hız	0~300rpm
Sıcaklık Aralığı	(-)20°C (+)80°C
Çalışma Nem Oranı	60%RH veya daha fazlası
Bağlantı Materyali	Değerli Metaller
Kaplama Materyali	Mühendislik Plastikleri veya AL

∞ Ürün Boyutları

RC22

RC22A

RC22B

RC22C

RC22D

RC22E

RC22F

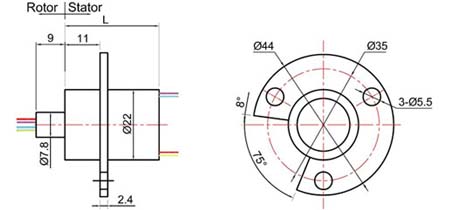

RC22G

RC22H

RC22I

RC22K

∞ İletim Özellikleri
EtherCAT , Profinet, Powerlink, Ethernet

∞ Değiştirilebilir Özellikler
Kablo Uzunluğu, Mekanik Tasarım, Flanş Opsiyonu, IP sınıfı, Çalışma sıcaklığı, Gövde Malzemesi, Askeri Sınıf

REC - RC22 Serisi

REC - RC22 Serisi Dökümanları

Kapsül Tip Slip Ring
